drylin® WKMEX-10-80: Ready-to-install measuring system

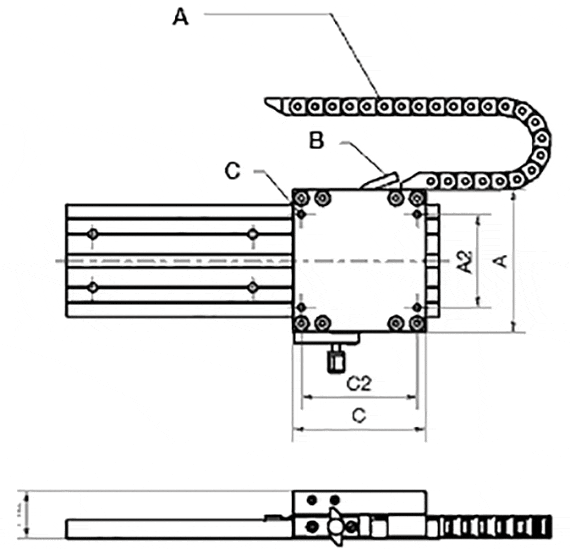

A = energychain 045.10.028.0, not part of the article
B = signal cables
C = K2

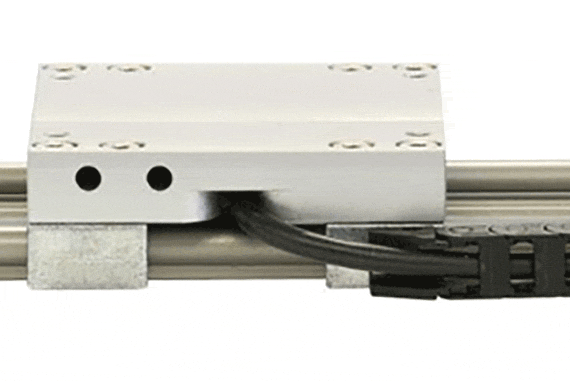

Very little installation space taken by the drylin® WKMEX measuring system. The sensor head is integrated into the just 36 mm high carriage. There are three sensor options, two are compatible with TTL Line Driver. An igus® e-chain® 045.10.028.0 is recommended for guiding the signal cable. For length-specific part numbers see:
System E2 micro
System easychain®

Ready-to-install system for external data output

At 4 edge triggering (setting parameters of the display or control system, for example, IW4) and +20 °C ambient temperature: resolution: ±(0.025 + 0.02 · L) L = measurement length in metres; repeatability: ±0.025 mm

At 1 edge triggering (setting parameters of the display or control system, for example, IW1) and +20 °C ambient temperature: resolution: ±(0.1 + 0.02 · L) L = measurement length in metres; repeatability: ±0.025 mm

Small sensor with integrated evaluation electronics

Output signals: differential mode sustained short circuit-proof with inverted signals (A. A/, B, B/, Z, Z/)

Delivery Program measuring device

All types A A2 C C2 H2 K2 Resolution
  [mm] [mm] [mm] [mm] [mm] [mm] [mm]
Verzendklaar in 10 werkdagen WKMEX-10-80-2.5-00-01 107 70 100 87 36 M6 0,1 op aanvraag Voeg toe aan winkelmandje
Verzendklaar in 10 werkdagen WKMEX-10-80-2.5-01-01 107 70 100 87 36 M6 0,1 op aanvraag Voeg toe aan winkelmandje
Verzendklaar in 10 werkdagen WKMEX-10-80-2.5-11-01 107 70 100 87 36 M6 0,1 op aanvraag Voeg toe aan winkelmandje
Meer over het geselecteerde onderdeel:
3D-CAD 3D-CAD
Monsterbestelling Monsterbestelling
PDF PDF
Prijsaanvraag Prijsaanvraag
myCatalog myCatalog
  Sensor type Nominal voltage Output power max. length of signal cable
  00 10 - 30 V 10 - 30 V 30 m
  01 10 - 30 V 5 V (TTL Line Driver) 50 m
  11 5 V 5 V (TTL Line Driver) 10 m
specifications
Measuring principle Incremental
Repeat accuracy ± 1 increment
Pole division 5 mm
Sensor housing Zinc die cast
Protection class IP67
Operating temperature -10 … +70° C
Max. humidity 95%, non-condensing
Max. speed 4,0 m/s
VDC power supply 5 VDC or 10 to 30 VDC
Current draw 5 VDC: max. 200 mA
10 to 30 VDC: max. 150 mA
Internal evaluation electronics Internal evaluation electronics
Output power 5 V-TTL line driver or 10 to 30 V_HTL
Source tracks A, A‘,B, B‘, Z, Z‘
Max. cable length Max. cable length 5V/5V-TTL = 10 m
10-30V/10-30V = 30 m
10-30V/5V-TTL = 50 m

Max. permissible distance from magnetic tape 2,0 mm
Connection method Open cable ends
